| Brand Name: | ZZY |
| Model Number: | ZIPC15DC |
| MOQ: | 1 |
| Price: | 70USD/unit |
| Payment Terms: | T/T |
| Supply Ability: | 3000 pcs/month |
Products Highlight
Extremely Compact Size: Ultra-small footprint (136 x 126 x 40 mm), ideal for space-constrained environments.
Quad Gigabit Ethernet Ports: Features 4x Intel i211/i210 GbE ports for high-density networking or firewall/router applications.
Flexible Processor Options: Supports multiple Intel Celeron CPUs (E3825/N2830/N2940/J1900) for varied performance needs.
Dual Storage Support: Equipped with both 1x mSATA SSD slot and 1x SATA 6Gb/s interface for flexible storage configurations.
Wide Operating Temperature: Supports SSD operation in harsh conditions (-20°C to +50°C).
Industrial-Grade Features: Includes Auto Start, Wake on LAN (WoL), PXE boot, and Watchdog timer for reliability and remote management.
Rich Expansion Capability: Features a Mini PCIe slot for adding WiFi, Bluetooth, or 4G/LTE modules.
Dual Display Outputs: Provides both VGA and HDMI ports for versatile multi-monitor setups.
Low Power Consumption: Powered by an efficient 12V-4A (48W) external adapter.
Lightweight Design: Very low net weight of only 0.7kg, enhancing portability and ease of mounting.
Products Datasheet
|
Model Number |
ZIPC28DF |
|
Processor |
Intel Celeron E3825/N2830/N2940/J1900 |
|
Memory |
1*DDR3L SO-DIMM Memory slot, Up to 8GB 1600MHz |
|
Storage |
1*mSATA SSD; 1*SATA 6.0Gb/s |
|
GPU |
InteIntegrated Intel HD Graphics |
|
Display Ports |
1*VGA; 1*HDMI |
|

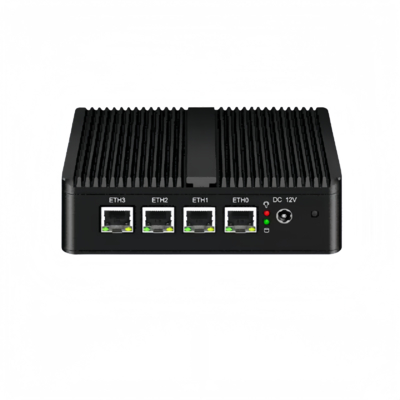

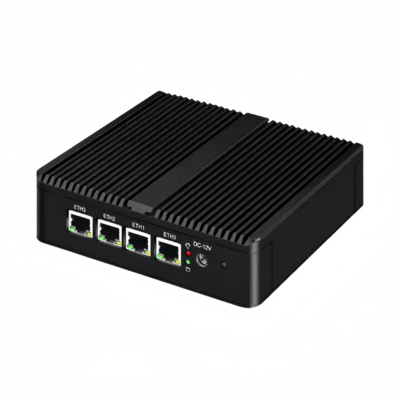

Front I/O |
4*Intel i211/i210 Gigabit Ethernet ports; 1*DC_IN; 1*Power HDD LED |
|

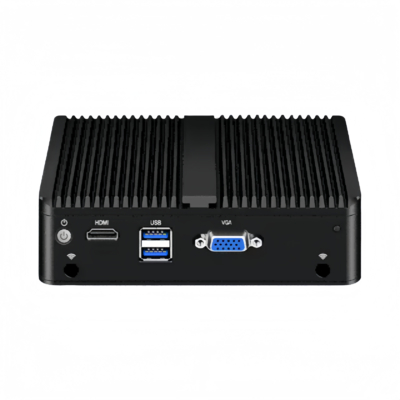

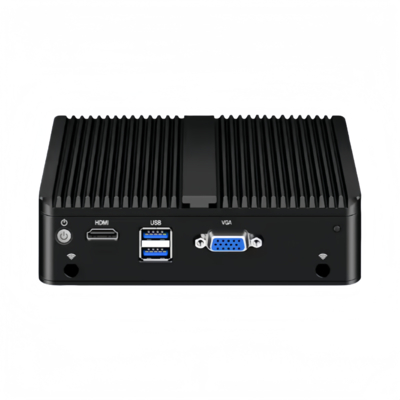

Back I/O |
2*USB3.0; 1*HD (With audio output); 1*VGA; 1*Power Button |
|
Expansion Bus |
1*Mini PCIe for WiFi/Bluetooth/4G Modules |
|
General Functions |
Auto Start; Wake on LAN; PXE; Watchdog |
|
Power Supply |
DC 12V-4A 5.5*2.5 |
|
Working Temperature |
-0~+50℃ for HDD; -20℃~+50℃ for SSD |
|
Environment Humidity |
5~90RH, Non-condensing |
|
Device Dimension |
136*126*40(mm) (L*W*H) |
|
Package Dimension |
200*170*120(mm) (L*W*H) |
|
Weight |
Gross Weight 1.4KG; Net Weight 0.7KG |
CPU Comparison
| Parameter | Celeron E3825 | Celeron N2830 | Celeron N2940 | Celeron J1900 |
| Architecture | Bay Trail (22nm) | Bay Trail-M (22nm) | Bay Trail-M (22nm) | Bay Trail-D (22nm) |
| Cores / Threads | 2C / 2T | 2C / 2T | 4C / 4T | 4C / 4T |
| Max. Turbo Frequency | N/A | 2.41 GHz | 2.25 GHz | 2.42 GHz |
| Base Frequency | 1.33 GHz | 2.16 GHz | 1.83 GHz | 2.00 GHz |
| L3 Cache | 1 MB | 1 MB | 2 MB | 2 MB |
| TDP (Base Power) | 6 W | 7.5 W | 7.5 W | 10 W |
| Integrated Graphics | HD Graphics (Bay Trail) | HD Graphics (Bay Trail) | HD Graphics (Bay Trail) | HD Graphics (Bay Trail) |
| GPU Frequency | 533 MHz | 313-750 MHz | 313-854 MHz | 688-854 MHz |
| Typical Use Cases | Basic embedded systems | Low-end tablets/netbooks | Budget laptops/mini-PCs | Mini-PCs/NAS/Entry desktops |
| System Type | Recommended OS | Why Suitable |
| Lightweight Linux | Ubuntu Server LTS / Debian | Minimal overhead, excellent driver support, ideal for headless/server roles |
| Firewall/Router | OPNsense / pfSense / OpenWRT | Leverages 4x Intel NICs for routing/NAT, low CPU demand |
| Media/Embedded | LibreELEC / OSMC (Kodi) | GPU handles 1080p decoding, compact size fits AV cabinets |
| Thin Client | Porteus Kiosk / ThinStation | Low resource needs, PXE/WoL support for centralized management |
| Windows | Windows 10 IoT LTSC / Tiny10 (stripped Win10) | For .NET/Windows-specific apps (max 4GB RAM recommended for smooth operation) |
Recomended Working Environment
Network Appliance
Firewall/Router: 4x Intel i211/i210 NICs + PXE/WoL for pfSense/OPNsense.
VPN Gateway: OpenVPN/WireGuard endpoint (J1900/N2940 recommended).
Industrial Control
PLC/HMI Interface: -20°C~50°C SSD operation in factories. Watchdog ensures uptime.
Sensor Hub: Collect RS-485/Modbus data via USB adapters.
Digital Signage
Drive dual displays (HDMI+VGA) for menus/ads. Auto-start survives power cuts.
Edge Computing
Lightweight data processing (e.g., IoT aggregation) before cloud upload.
Thin Client/VDI
Remote desktop terminal for Citrix/VMware Horizon (using Linux/ThinStation).
NAS Lite
SATA+mSATA for basic RAID 1 storage (via OMV/TrueNAS Core if RAM upgraded).
Kiosk System
Web-based POS/info displays (Porteus Kiosk secures against tampering).
Packing and Accessories
The product includes: carton, machine, SATA cables and other wire harnesses, power adapter, spare screws, protective foam, and warranty card.
Shipping Solution
We offer three shipping options: DHL, UPS, and FedEx.
If you maintain your own DHL, UPS, or FedEx account, we can arrange shipping using your account at no additional charge.
If you have a designated freight forwarder in China, we will deliver the goods directly to your forwarder without extra fees. Furthermore, we will coordinate directly with your forwarder and prepare all necessary documentation.
For your reference in freight cost estimation, should you require product packaging dimensions and weight details, please feel free to contact us. We will respond to your inquiry promptly.
About Customization
All products can be customized according to your requirements, including:
Chassis (color, appearance, etc.)
Motherboard (number of Ethernet ports, chipset type, SIM card slot expansion, etc.)
Carton (logo customization)
The process is as follows:
| Phase | Stage | Key Activities & Deliverables |
|---|---|---|
| 1 | Inquiry | • Client submits detailed customization requirements |
| 2 | Requirements Confirmation | • Supplier provides feasibility previews • Client approves technical specifications |
| 3 | Feasibility Analysis | • Technical validation of design/production • Risk assessment report |
| 4 | Quotation | • Detailed cost breakdown • Production timeline with milestones |
| 5 | Place Order | • Contract execution with payment terms • Final requirement verification (double-check) |
| 6 | Mass Production | • Bulk manufacturing launch • Quality control during production |
| 7 | Pre-Delivery Audit | • Export documentation (HS code, invoice) • Declared value verification • Final QC inspection |
| 8 | Delivery & Support | • Logistics coordination • Real-time shipment tracking • Post-delivery support |
